السلام عليكم
هل يمكن استنتاج أي شيء من اللوغو المرفق في الموضوع باستثناء أن البوكس لم يجد نظام الأندرويد..؟
أثناء تمرير dump عن طريق unlock tool لـ 13c أغلقت الواجهة بالخطأ. وفقدت البوت للهاتف..

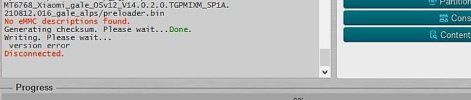

حاولت الإصلاح عن طريق ملف سكاتر على واجهة البوكس لكن لم ينجح الأمر..
الاستفسار الآن عن لوغو الميدوزا..
كود:
Please disconnect battery and USB cable.
Model Settings:
Interface : eMMC
Voltage : 1.8V
Bus Mode : 1 bit
Bus speed : Auto
Connecting...
Wrong adapter type for measure request.
Device : Samsung eMMC DUTB42
Page size : 512 B
Block size : 512 B
Block count : 244277248
Size : 116.48 GB (119276.00 MB)
---------------------------------------------------------------
CID Info
CID : 15010044555442343202BCE4F4B3B661
Manufacturer ID : 0X15
Device/BGA : BGA (Discrete embedded)
OEM/Application ID : 0X00
Product name : DUTB42
Product revision : 0.2
Product serial number : (hex) BCE4F4B3
Manufacturing date : 11/2019
---------------------------------------------------------------
CSD Info
CSD : D02701320F5903FFF6DBFFEF8E40400D
CSD structure : CSD version No. 1.2
SPEC version : 4.1, 4.2, 4.3, 4.4, 4.41, 4.5,
4.51, 5.0, 5.01, 5.1
Data read access time1: 15 ms
TRAN speed : 26 MHz
READ block length : 512 Bytes
WP group enable : YES
PERM_WRITE_PROTECT : NO
TMP_WRITE_PROTECT : NO
---------------------------------------------------------------
EXTCSD Info
Revision 1.8 (for MMC v5.1)
Erase block size : 512 Kbytes
Boot1 size : 4096 Kbytes
Boot2 size : 4096 Kbytes
RPMB size : 16384 Kbytes
Partition config : (0x50) 01010000
Boot partition enable : Boot partition 2
(Bus width = 8Bit)
Boot ACK : Boot acknowledge sent during boot operation Bit
Boot bus conditions : (0x02) 00000010
Boot bus width : x8 (sdr/ddr) bus width in boot operation mode
Reset boot bus conditions : Reset bus width to x1, single data rate and backward compatible timings after boot operation (default)
Boot mode : Use single data rate + backward compatible timings in boot operation (default)
RST_n function : (0x01) RST_n signal is permanently enabled
Partitioning support : Device supports partitioning features
Enhanced attribute : Device can have enhanced technological features in partitions and user data area.
Max enhanced data size: 40706048 Kbytes
Partitions attribute : 0x0
Part setting completed: 0x0
GP partition 1 size : 0 b
GP partition 2 size : 0 b
GP partition 3 size : 0 b
GP partition 4 size : 0 b
Enhanced area size : (0x0) 0 b
Enhanced area start : (0x0) 0 b
Backup EXT_CSD saved to file C:/Program Files (x86)/Medusa Pro Software/EXT_CSD Backups/DUTB42_20_02_2025_03_33_31.bin.
RPMB: Counter of the successful data write requests = 71843.
EMMC connected successful.
---------------------------------------------------------------
SW: 2.2.5.6; FW: 1.27.
Part.00: GPT (00000000, 00000040) 32 KB
Part.01: misc (00000040, 00000400) 512 KB
Part.02: para (00000440, 00000400) 512 KB
Part.03: expdb (00000840, 0000A000) 20 MB
Part.04: frp (0000A840, 00000800) 1024 KB
Part.05: vbmeta_a (0000B040, 00004000) 8 MB
Part.06: vbmeta_system_a (0000F040, 00004000) 8 MB
Part.07: vbmeta_vendor_a (00013040, 00004000) 8 MB
Part.08: vbmeta_b (00017040, 00004000) 8 MB
Part.09: vbmeta_system_b (0001B040, 00004000) 8 MB
Part.10: vbmeta_vendor_b (0001F040, 00004000) 8 MB
Part.11: md_udc (00023040, 0000B4D0) 22.6 MB
Part.12: metadata (0002E510, 00010000) 32 MB
Part.13: nvcfg (0003E510, 00010000) 32 MB
Part.14: nvdata (0004E510, 00020000) 64 MB
Part.15: persist (0006E510, 00018000) 48 MB
Part.16: persistbak (00086510, 00018000) 48 MB
Part.17: protect1 (0009E510, 00004000) 8 MB
Part.18: protect2 (000A2510, 00005AF0) 11.37 MB
Part.19: seccfg (000A8000, 00004000) 8 MB
Part.20: md1img_a (000AC000, 00040000) 128 MB
Part.21: spmfw_a (000EC000, 00000800) 1024 KB
Part.22: scp_a (000EC800, 00003000) 6 MB
Part.23: sspm_a (000EF800, 00000800) 1024 KB
Part.24: gz_a (000F0000, 00008000) 16 MB
Part.25: lk_a (000F8000, 00004000) 8 MB
Part.26: boot_a (000FC000, 00020000) 64 MB
Part.27: vendor_boot_a (0011C000, 00020000) 64 MB
Part.28: dtbo_a (0013C000, 00004000) 8 MB
Part.29: tee_a (00140000, 00004000) 8 MB
Part.30: sec1 (00144000, 00001000) 2048 KB
Part.31: proinfo (00145000, 00001800) 3072 KB
Part.32: efuse (00146800, 00000400) 512 KB
Part.33: boot_para (00146C00, 0000D000) 26 MB
Part.34: nvram (00153C00, 00020000) 64 MB
Part.35: countrycode (00173C00, 00001000) 2048 KB
Part.36: logo_a (00174C00, 00018000) 48 MB
Part.37: bk0 (0018CC00, 00007400) 14.5 MB
Part.38: md1img_b (00194000, 00040000) 128 MB
Part.39: spmfw_b (001D4000, 00000800) 1024 KB
Part.40: scp_b (001D4800, 00003000) 6 MB
Part.41: sspm_b (001D7800, 00000800) 1024 KB
Part.42: gz_b (001D8000, 00008000) 16 MB
Part.43: lk_b (001E0000, 00004000) 8 MB
Part.44: boot_b (001E4000, 00020000) 64 MB
Part.45: vendor_boot_b (00204000, 00020000) 64 MB
Part.46: dtbo_b (00224000, 00004000) 8 MB
Part.47: tee_b (00228000, 00002800) 5 MB
Part.48: logo_b (0022A800, 00018000) 48 MB
Part.49: bk1 (00242800, 00000800) 1024 KB
Part.50: gsort (00243000, 00008000) 16 MB
Part.51: ffu (0024B000, 00004000) 8 MB
Part.52: cust (0024F000, 00400000) 2048 MB
Part.53: rescue (0064F000, 00040000) 128 MB
Part.54: mem (0068F000, 00004000) 8 MB
Part.55: opcust (00693000, 000C8000) 400 MB
Part.56: opconfig (0075B000, 0000A000) 20 MB
Part.57: bk2 (00765000, 00003000) 6 MB
Part.58: super (00768000, 00E00000) 7 GB
Part.59: userdata (01568000, 0D3707C0) 105.7 GB
Part.60: otp (0E8D87C0, 00015800) 43 MB
Part.61: flashinfo (0E8EDFC0, 00008000) 16 MB
Backuping nvdata partition...
Opening C:/Program Files (x86)/Medusa Pro Software/Backups/DUTB42_nvdata_0x4e510_0x20000_20_02_2025_03_33_32.bin file...
Reading. Please wait... Done.
Elapsed time 00:00:28
SW: 2.2.5.6; FW: 1.27.
---------------------------------------------------------------
Searching Android build info...
Not found
---------------------------------------------------------------الله الموفق.
