كود:
Acquiring device information...
Reading device SN information
Obtaining device product model
... (bootloader) FRL-L22 OKAY [ 0.016s] finished. total time: 0.016s
Obtaining device version information
... (bootloader) FRLM-L22 10.1.1.228(C185E18R8P1) OKAY [ 0.007s] finished. total time: 0.007s
Obtaining device basverlist Version information
... (bootloader) :FRLM-LGRP4-OVS 10.1.1.228 OKAY [ 0.008s] finished. total time: 0.008s
Obtaining device cust Version information
... (bootloader) :FRLM-L22-CUST 10.1.1.18(C185) OKAY [ 0.008s] finished. total time: 0.008s
Obtaining device preload Version information
... (bootloader) :FRLM-L22-PRELOAD 10.1.1.1(C185R8) OKAY [ 0.010s] finished. total time: 0.010s
Device BL Status:
... (bootloader) FB LockState: LOCKED (bootloader) USER LockState: LOCKED OKAY [ 0.000s] finished. total time: 0.000s
Device Battery Information:
... (bootloader) 3896 OKAY [ 0.008s] finished. total time: 0.008s
Reading device operator and region information
vendorcountry: hw/meafnaf finished. total time: 0.006s
Operation completed!
Wait...
S/N: 0041DEDF35 v0163
CM2 - MT2 Service Tool v2.64
Init log engine... Ok
Build directories tree... Ok
Backup files: E:\New folder\cm2\backup\
Backup files: 6 dirs: 0
Verify device database... BuiltIn: 28 Custom: 0
Build device list...
Load IDBase v915508 Ok
Load 152 profiles... Ok
libusb: v1.2.6.0
Init environment... Ok
Ready
DA selected: Huawei | 2019 | MTK_AllInOne_DA.52ddbde7.bin | auth_sv5.auth | preloader_k62v1_64_mexico_d.bin
DA files missing
Select another Device from list or Click to [Get boot files]
Get loader info... update required
Get Huawei/Y9a
Install... Ok
Get loader info... Ok
DA selected: Huawei | Y9a | MTK_AllInOne_DA.1d5fdec4.bin
5 DA available, try it one-by-one
Operation: Reset Settings/Format FS [ v2.64 ]
[+] Smart Analyzer
[+] Wipe
[+] Userdata
[+] FRP
[+] Accounts
WARNING: Reset may delete ALL USER DATA!
Wait...
Connection: Boot [DA] Factory
Port: Both [ B + P ]; High-Speed: Off
[-] Force BROM
[-] Local SLA
[+] Auto-EMI
[+] FireFly-Over-DA

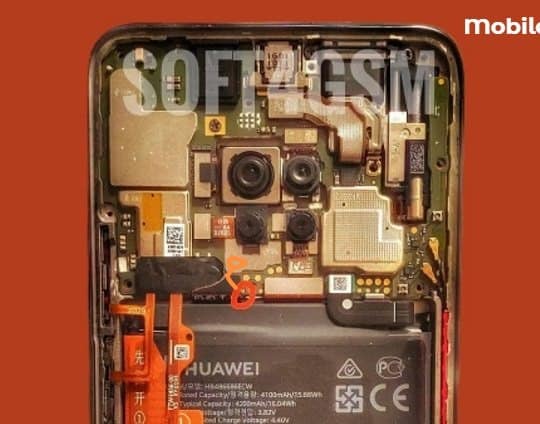

- Power device Off [remember Test-Point]
- Connect cable [remember Vol+ | Vol-]
Waiting for device...
PTFN: MediaTek PreLoader USB VCOM_V1633 (Android) (COM4)
MODE [0]: PRELOADER PORT; PORT: 4
Waiting for BOOT ACK...
BROM: Init...
Fail to init protocol
Disconnect battery and cable
Be sure SoC drivers installed well
Change cable and USB port, do not use USB-hub
Select another base|model|DA
Finished 32 sec
Reconnect Power/Cable now
Operation: Reset Settings/Format FS [ v2.64 ]
[+] Smart Analyzer
[+] Wipe
[+] Userdata
[+] FRP
[+] Accounts
WARNING: Reset may delete ALL USER DATA!
Wait...
Connection: Boot [DA] Factory
Port: Both [ B + P ]; High-Speed: Off
[-] Force BROM
[-] Local SLA
[+] Auto-EMI
[+] FireFly-Over-DA
- Power device Off [remember Test-Point]
- Connect cable [remember Vol+ | Vol-]
Waiting for device...
PTFN: MediaTek USB Port_V1633 (COM5)
MODE [0]: BOOTROM; PORT: 5
Waiting for BOOT ACK...
BROM: Init... Ok
CHIP: MT6768 SBID: 0x8A00 HWVR: 0xCA00 SWVR: 0x0000 EVOL: 0x0000 HWC: 0x0707
CODE: Talbot
TYPE: MODERN [RAPHAEL]
MEID: 5E315EAF05936A9C93626FEE679C42F8
BROM: Sec Level: 0x000000E5 Mode: SBC+SDA+EXT
VER: 0x05 BL: 0xFE [BOOTROM]
SOCID: 2BF809745603B337314CA5A4F24FCA3431C3E9FA0DDE51D3E783D3EFD8672BCB
SLA: Local Auth [Forced mode]
Start Auth... Ok
Continue Auth... Ok
FF: Looking for EMI Found
SLA: Start 0x15
Auth Passed; SEC: 0x000000E0
EMI loaded by MEID: 5E315EAF05936A9C93626FEE679C42F8
Agent:
[07fb00a6] E:\New folder\cm2\boot\0_base\base_v2316\MTK_AllInOne_DA.1d5fdec4.bin
Looking for bootchain in DA...
Found: MT6768; DA: MTK_DOWNLOAD_AGENT
BROM: Sending 1st DA...
DA sent
Jump to DA... Ok
Sync... Ok
DA started
DA SYNC Ok
MODE: BROM
EXT_RAM NOT initialized
EMMC
CID: 45010044413431323801EF40A219B717 crc Ok
Vendor: Sandisk OEM: 256 ID: 444134313238 [DA4128] PRV: 0x01
Serial: 4013990425 0xEF40A219
MM/YY: 11/2020
EMI: FireFly preloader_k69v1_64.bin with 25 memory type(s)
1. DRAM LP_DDR4X ID: NOT_DEFINED Unknown 0x0000 RAM: 512.00 Mb
2. eMMC DDR3 ID: 90014A68423861503E Hynix hB8aP> RAM: 3.00 Gb
3. eMMC LP_DDR4X ID: 90014A68433861503E Hynix hC8aP> RAM: 4.00 Gb
4. eMMC LP_DDR4X ID: 90014A684339615033 Hynix hC9aP3 RAM: 4.00 Gb
5. eMMC LP_DDR4X ID: 150100445036444142 Samsung DP6DAB RAM: 4.00 Gb
6. eMMC LP_DDR4X ID: 150100445636444142 Samsung DV6DAB RAM: 4.00 Gb
7. eMMC LP_DDR4X ID: 13014E53304A394B39 Micron S0J9K9 RAM: 4.00 Gb
8. eMMC LP_DDR4X ID: 1501003458364B4D42 Samsung 4X6KMB RAM: 2.00 Gb
9. eMMC LP_DDR4X ID: 90014A68423861503E Hynix hB8aP> RAM: 2.00 Gb
10. eMMC LP_DDR4X ID: 150100445836384D42 Samsung DX68MB RAM: 3.00 Gb
11. eMMC LP_DDR4X ID: 90014A68423861503E Hynix hB8aP> RAM: 3.00 Gb
12. eMMC LP_DDR4X ID: 150100445036384D42 Samsung DP68MB RAM: 3.00 Gb
13. eMMC LP_DDR4X ID: 90014A68433861503E Hynix hC8aP> RAM: 3.00 Gb
14. eMMC LP_DDR4X ID: 13014E53304A394A38 Micron S0J9J8 RAM: 3.00 Gb
15. eMMC LP_DDR4X ID: 13014E53304A394B38 Micron S0J9K8 RAM: 4.00 Gb
16. DRAM LP_DDR4X ID: NOT_DEFINED Unknown 0x0000 RAM: 6.00 Gb
17. DRAM LP_DDR4X ID: NOT_DEFINED Unknown 0x0000 RAM: 6.00 Gb
18. DRAM LP_DDR4X ID: NOT_DEFINED Unknown 0x0000 RAM: 6.00 Gb
19. DRAM LP_DDR4X ID: NOT_DEFINED Unknown 0x0000 RAM: 8.00 Gb
20. DRAM LP_DDR4X ID: NOT_DEFINED Unknown 0x0000 RAM: 8.00 Gb
21. DRAM LP_DDR4X ID: NOT_DEFINED Unknown 0x0000 RAM: 8.00 Gb
22. DRAM LP_DDR4X ID: NOT_DEFINED Unknown 0x0000 RAM: 4.00 Gb
23. DRAM LP_DDR4X ID: NOT_DEFINED Unknown 0x0000 RAM: 4.00 Gb
24. DRAM LP_DDR4X ID: NOT_DEFINED Unknown 0x0000 RAM: 4.00 Gb
25. DRAM LP_DDR4X ID: NOT_DEFINED Unknown 0x0000 RAM: 4.00 Gb
Push EMI... EXT_RAM CFG Passed
Boot to 2nd DA...
2nd stage confirmed
DA SYNC Ok
Load HW info...
RAM: SRAM: 0x00070000 [ 448.00 Kb ]
RAM: DRAM: 0x100000000 [ 4.00 Gb ]
EMMC
CID: 45010044413431323801EF40A219B717 crc Ok
Vendor: Sandisk OEM: 256 ID: 444134313238 [DA4128] PRV: 0x01
Serial: 4013990425 0xEF40A219
MM/YY: 11/2020
BOOT1: 0x00400000 [ 4.00 Mb ]
BOOT2: 0x00400000 [ 4.00 Mb ]
RPMB: 0x01000000 [ 16.00 Mb ]
USER: 0x1D1EC00000 [ 116.48 Gb ]
CHIP: MT6768 SBID: 0x8A00 HWVR: 0xCA00 SWVR: 0x0001 EVOL: 0x0000 HWC: 0x0707
CODE: Talbot
TYPE: MODERN [RAPHAEL]
RNID: C1D1E120662AC31462AF75EFB9DA0078
MEID: 5E315EAF05936A9C93626FEE679C42F8
USB: HIGH-SPEED
Boot done MODERN [RAPHAEL] 8 sec
Analyze PMT... Ok
Partition Table: PGPT [0x64] Records: 56
Probe boot... Ok 625 us
HWModel : FRLM-L22
HWMline : FRL-L22
HWBuild : FRLM-L22 10.1.1.228(C185E18R8P1)
HWOSver : EmotionUI_10.1.1
HWRegion: hw/meafnaf
Product Board: k69v1_64
Board Platform: mt6768
Product Brand: alps
Product Device: k69v1_64
Product Manfct: alps
Product Model: k69v1_64
Product Name: full_k69v1_64
Product Manfct: HUAWEI
SW: alps/full_k69v1_64/k69v1_64:10/QP1A.190711.020/q0mp1k69v164P65:user/dev-keys
Patch Level: QP1A.190711.020
SW Version: q0mp1k69v164P65
Ver. CodeName: REL
Ver. Release: 10
Sec. Patch: 2020-10-01
Build Time: 3/22/2024 5:59:32 AM
CPU: arm64-v8a,armeabi-v7a,armeabi
CPU: armeabi-v7a,armeabi
CPU: arm64-v8a
Product Info: k69v1_64
SW: full_k69v1_64-user 10 QP1A.190711.020 q0mp1k69v164P65 dev-keys
Device ID: k69v1-64-full-k69v1-64-FRLM-L22_EmotionUI_10.1.1_FRLM-L22_10.1.1.228(C185E18R8P1)_FRL-L22_hwmeafnaf
Strategy: [huawei]
Firmware ID: MT6768_HUAWEI_k69v1_64_OSv10_QP1A.190711.020_k69v1_64_alps.FRLM-L22_EmotionUI_10.1.1_FRLM-L22_10.1.1.228_C185E18R8P1_FRL-L22_hwmeafnaf
Android ver: 10
UserDataFS: 0x02 [ext4|8+] CacheFS: 0x02 [ext4|8+]
EMMC
CID: 45010044413431323801EF40A219B717 crc Ok
Vendor: Sandisk OEM: 256 ID: 444134313238 [DA4128] PRV: 0x01
Serial: 4013990425 0xEF40A219
MM/YY: 11/2020
BOOT1: 0x00400000 [ 4.00 Mb ]
BOOT2: 0x00400000 [ 4.00 Mb ]
RPMB: 0x01000000 [ 16.00 Mb ]
USER: 0x1D1EC00000 [ 116.48 Gb ]
Backup to E:\New folder\cm2\backup\MT6768__5E315EAF05936A9C93626FEE679C42F8\
Items to check: 22
Read [12] NVRAM
NVRAM: Items: 0xB6 Size: 0x147DD4 State: Ok
WiFi MAC: 000000000000
BT MAC: 000046000001
IMEI[1]: 866937050444526
IMEI[2]: 866937050464532
Read [5] NVDATA
Read [11] PROINFO
Read [23] LK
lk [2a0f38c8]
Read [4] NVCFG
Read [6] PROTECT1
Read [1] PGPT
Read [10] PERSIST
Read [0] PRELOADER
Read [13] OEMINFO
Done 10 files 10 sec
Compress: E:\New folder\cm2\backup\MT6768__5E315EAF05936A9C93626FEE679C42F8\
Cleanup...
Ok
Verify E:\New folder\cm2\backup\MT6768__5E315EAF05936A9C93626FEE679C42F8.7z Enough [k69v1-64-full-k69v1-64-frlm-l22-emotionui-10.1.1-frlm-l22-10.1.1.228c185e18r8p1-frl-l22-hwmeafnaf]
Stage: Android OS
[1] misc... Skip for Strategy [huawei]
[2] para... Skip for Strategy [huawei]
[3] userdata...
Create partition image... Ok Ok
[4] cache...
Create partition image... Ok Ok
[6] metadata... Ok
Stage: FRP...
[1] frp... Ok
[1] verify 128.00 Kb... Ok
Done
Stage: Smart... Ok
Stage: Accounts... H-Account
file: E:\New folder\cm2\backup\MT6768__5E315EAF05936A9C93626FEE679C42F8\rpmb.bin
Reading...
Ok
H-Account: Reset... Ok
Finished 1 min 51 sec
Keep connection
