# General Setting
#
############################################################################################################
- general: MTK_PLATFORM_CFG
info:
- config_version: V1.1.2
platform: MT6580
project: a3a63g_gmo
storage: EMMC
boot_channel: MSDC_0
block_size: 0x20000
############################################################################################################
#

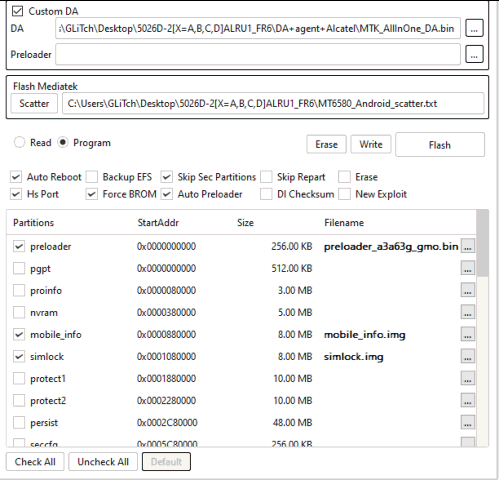

# Layout Setting
#
############################################################################################################
- partition_index: SYS0
partition_name: preloader
file_name: preloader_a3a63g_gmo.bin
is_download: true
type: SV5_BL_BIN
linear_start_addr: 0x0
physical_start_addr: 0x0
partition_size: 0x40000
region: EMMC_BOOT_1
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: BOOTLOADERS
reserve: 0x00
- partition_index: SYS1
partition_name: pgpt
file_name: NONE
is_download: false
type: NORMAL_ROM
linear_start_addr: 0x0
physical_start_addr: 0x0
partition_size: 0x80000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: INVISIBLE
reserve: 0x00
- partition_index: SYS2
partition_name: proinfo
file_name: NONE
is_download: false
type: NORMAL_ROM
linear_start_addr: 0x80000
physical_start_addr: 0x80000
partition_size: 0x300000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: PROTECTED
reserve: 0x00
- partition_index: SYS3
partition_name: nvram
file_name: NONE
is_download: false
type: NORMAL_ROM
linear_start_addr: 0x380000
physical_start_addr: 0x380000
partition_size: 0x500000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: BINREGION
reserve: 0x00
- partition_index: SYS4
partition_name: mobile_info
file_name: mobile_info.img
is_download: true
type: EXT4_IMG
linear_start_addr: 0x880000
physical_start_addr: 0x880000
partition_size: 0x800000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: UPDATE
reserve: 0x00
- partition_index: SYS5
partition_name: simlock
file_name: simlock.img
is_download: true
type: EXT4_IMG
linear_start_addr: 0x1080000
physical_start_addr: 0x1080000
partition_size: 0x800000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: UPDATE
reserve: 0x00
- partition_index: SYS6
partition_name: protect1
file_name: NONE
is_download: false
type: EXT4_IMG
linear_start_addr: 0x1880000
physical_start_addr: 0x1880000
partition_size: 0xa00000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: PROTECTED
reserve: 0x00
- partition_index: SYS7
partition_name: protect2
file_name: NONE
is_download: false
type: EXT4_IMG
linear_start_addr: 0x2280000
physical_start_addr: 0x2280000
partition_size: 0xa00000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: PROTECTED
reserve: 0x00
- partition_index: SYS8
partition_name: persist
file_name: NONE
is_download: false
type: EXT4_IMG
linear_start_addr: 0x2c80000
physical_start_addr: 0x2c80000
partition_size: 0x3000000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: PROTECTED
reserve: 0x00
- partition_index: SYS9
partition_name: seccfg
file_name: NONE
is_download: false
type: NORMAL_ROM
linear_start_addr: 0x5c80000
physical_start_addr: 0x5c80000
partition_size: 0x40000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: INVISIBLE
reserve: 0x00
- partition_index: SYS10
partition_name: lk
file_name: lk.bin
is_download: true
type: NORMAL_ROM
linear_start_addr: 0x5cc0000
physical_start_addr: 0x5cc0000
partition_size: 0x60000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: UPDATE
reserve: 0x00
- partition_index: SYS11
partition_name: boot
file_name: boot.img
is_download: true
type: NORMAL_ROM
linear_start_addr: 0x5d20000
physical_start_addr: 0x5d20000
partition_size: 0x1000000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: UPDATE
reserve: 0x00
- partition_index: SYS12
partition_name: recovery
file_name: recovery.img
is_download: true
type: NORMAL_ROM
linear_start_addr: 0x6d20000
physical_start_addr: 0x6d20000
partition_size: 0x1000000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: UPDATE
reserve: 0x00
- partition_index: SYS13
partition_name: para
file_name: NONE
is_download: false
type: NORMAL_ROM
linear_start_addr: 0x7d20000
physical_start_addr: 0x7d20000
partition_size: 0x80000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: INVISIBLE
reserve: 0x00
- partition_index: SYS14
partition_name: logo
file_name: logo.bin
is_download: true
type: NORMAL_ROM
linear_start_addr: 0x7da0000
physical_start_addr: 0x7da0000
partition_size: 0x800000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: UPDATE
reserve: 0x00
- partition_index: SYS15
partition_name: expdb
file_name: NONE
is_download: false
type: NORMAL_ROM
linear_start_addr: 0x85a0000
physical_start_addr: 0x85a0000
partition_size: 0xa00000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: INVISIBLE
reserve: 0x00
- partition_index: SYS16
partition_name: frp
file_name: NONE
is_download: false
type: NORMAL_ROM
linear_start_addr: 0x8fa0000
physical_start_addr: 0x8fa0000
partition_size: 0x100000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: INVISIBLE
reserve: 0x00
- partition_index: SYS17
partition_name: tee1
file_name: trustzone.bin
is_download: true
type: NORMAL_ROM
linear_start_addr: 0x90a0000
physical_start_addr: 0x90a0000
partition_size: 0x500000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: UPDATE
reserve: 0x00
- partition_index: SYS18
partition_name: tee2
file_name: trustzone.bin
is_download: true
type: NORMAL_ROM
linear_start_addr: 0x95a0000
physical_start_addr: 0x95a0000
partition_size: 0x500000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: UPDATE
reserve: 0x00
- partition_index: SYS19
partition_name: nvdata
file_name: NONE
is_download: false
type: EXT4_IMG
linear_start_addr: 0x9aa0000
physical_start_addr: 0x9aa0000
partition_size: 0x2000000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: INVISIBLE
reserve: 0x00
- partition_index: SYS20
partition_name: metadata
file_name: NONE
is_download: false
type: NORMAL_ROM
linear_start_addr: 0xbaa0000
physical_start_addr: 0xbaa0000
partition_size: 0x2000000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: INVISIBLE
reserve: 0x00
- partition_index: SYS21
partition_name: oemisc
file_name: NONE
is_download: false
type: NORMAL_ROM
linear_start_addr: 0xdaa0000
physical_start_addr: 0xdaa0000
partition_size: 0x4560000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: INVISIBLE
reserve: 0x00
- partition_index: SYS22
partition_name: oemkeystore
file_name: NONE
is_download: false
type: NORMAL_ROM
linear_start_addr: 0x12000000
physical_start_addr: 0x12000000
partition_size: 0x200000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: INVISIBLE
reserve: 0x00
- partition_index: SYS23
partition_name: secro
file_name: secro.img
is_download: true
type: NORMAL_ROM
linear_start_addr: 0x12200000
physical_start_addr: 0x12200000
partition_size: 0x600000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: UPDATE
reserve: 0x00
- partition_index: SYS24
partition_name: keystore
file_name: NONE
is_download: false
type: NORMAL_ROM
linear_start_addr: 0x12800000
physical_start_addr: 0x12800000
partition_size: 0x800000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: INVISIBLE
reserve: 0x00
- partition_index: SYS25
partition_name: smart
file_name: NONE
is_download: false
type: NORMAL_ROM
linear_start_addr: 0x13000000
physical_start_addr: 0x13000000
partition_size: 0x1000000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: INVISIBLE
reserve: 0x00
- partition_index: SYS26
partition_name: system
file_name: system.img
is_download: true
type: EXT4_IMG
linear_start_addr: 0x14000000
physical_start_addr: 0x14000000
partition_size: 0xd3800000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: UPDATE
reserve: 0x00
- partition_index: SYS27
partition_name: cache
file_name: cache.img
is_download: true
type: EXT4_IMG
linear_start_addr: 0xe7800000
physical_start_addr: 0xe7800000
partition_size: 0x10000000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: UPDATE
reserve: 0x00
- partition_index: SYS28
partition_name: userdata
file_name: userdata.img
is_download: true
type: EXT4_IMG
linear_start_addr: 0xf7800000
physical_start_addr: 0xf7800000
partition_size: 0x60000000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: UPDATE
reserve: 0x00
- partition_index: SYS29
partition_name: otp
file_name: NONE
is_download: false
type: NORMAL_ROM
linear_start_addr: 0xFFFF01dc
physical_start_addr: 0xFFFF01dc
partition_size: 0x2b00000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: false
is_reserved: true
operation_type: RESERVED
reserve: 0x00
- partition_index: SYS30
partition_name: flashinfo
file_name: NONE
is_download: false
type: NORMAL_ROM
linear_start_addr: 0xFFFF0084
physical_start_addr: 0xFFFF0084
partition_size: 0x1000000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: false
is_reserved: true
operation_type: RESERVED
reserve: 0x00
- partition_index: SYS31
partition_name: sgpt
file_name: NONE
is_download: false
type: NORMAL_ROM
linear_start_addr: 0xFFFF0004
physical_start_addr: 0xFFFF0004
partition_size: 0x80000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: false
is_reserved: true
operation_type: RESERVED
reserve: 0x00
